Description
Product Highlights
• Supports AMD Ryzen™ 5000 / 5000 G-Series / 4000 G-Series / 3000 Series processors
• AMD A520 chipset with AM4 socket for reliable Ryzen desktop builds
• 2 × DDR4 DIMM slots support up to 64GB memory capacity
• Supports DDR4 memory up to 5100MHz OC
• M.2 slot and 4 × SATA 6Gb/s ports for flexible storage expansion
• HDMI 2.1 and D-Sub output for display connectivity
Key Specifications
Product Type: AMD Motherboard

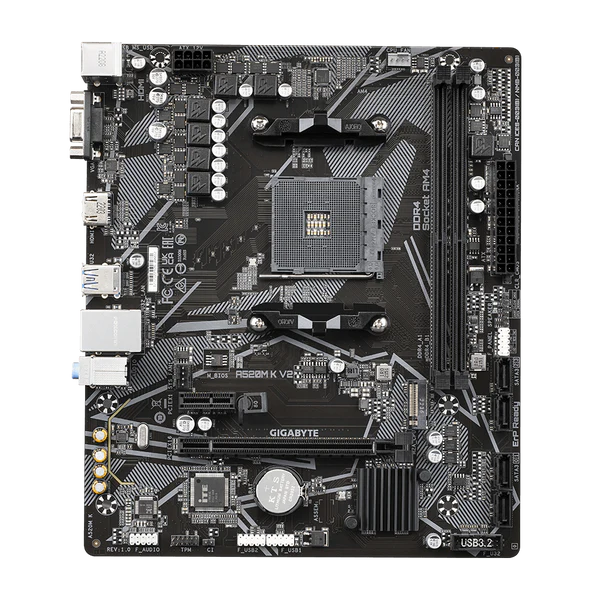

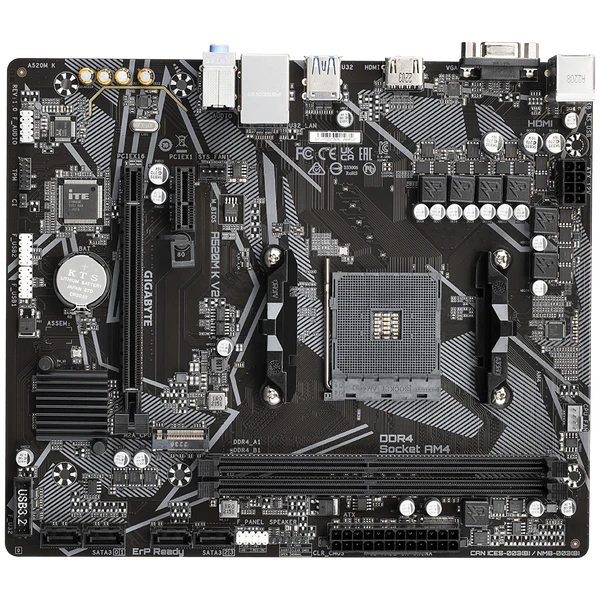

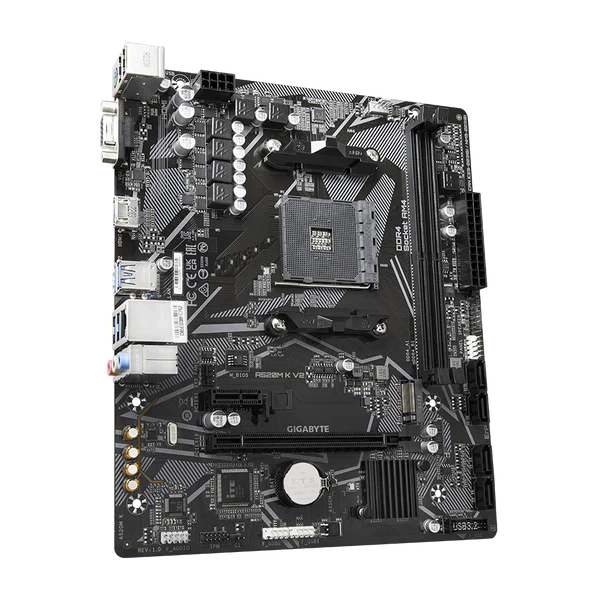

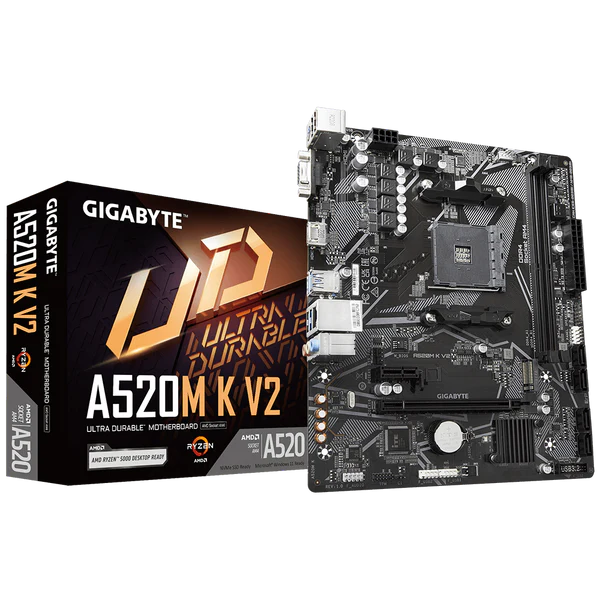

Model: GIGABYTE A520M K V2 Rev 1.1
Chipset: AMD A520
CPU Socket: AMD AM4
CPU Support:
• AMD Ryzen™ 5000 G-Series Processors
• AMD Ryzen™ 5000 Series Processors
• AMD Ryzen™ 4000 G-Series Processors
• AMD Ryzen™ 3000 Series Processors
• AMD Ryzen™ 3000 G-Series Processors
Memory:
• 2 × DDR4 DIMM Slots
• Maximum Memory Capacity: 64GB
• Memory Support Up To DDR4 5100MHz OC
Video Output:
• 1 × D-Sub
• 1 × HDMI 2.1
Audio: Realtek® Audio CODEC
LAN: Realtek® GbE LAN Chip
Expansion Slots:
• 1 × PCIe x16 Slot, PCIe 3.0
• 1 × PCIe x1 Slot, PCIe 3.0
Storage:
• 1 × M.2 Connector
• 4 × SATA 6Gb/s Connectors
USB:
• 4 × USB 3.2 Gen 1 Rear Ports
• 2 × USB 3.2 Gen 1 via Internal Header
• 2 × USB 2.0 Rear Ports
• 4 × USB 2.0 via Internal Headers

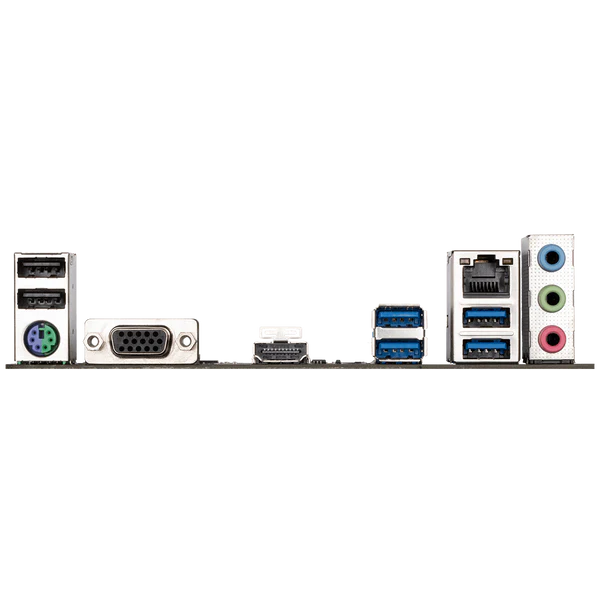

Rear I/O:
• 1 × PS/2 Keyboard / Mouse Port
• 1 × D-Sub Port
• 1 × HDMI Port
• 4 × USB 3.2 Gen 1 Ports
• 2 × USB 2.0 Ports
• 1 × RJ-45 Port
• 3 × Audio Jacks
Dimensions & Weight:
• Dimensions: 23.3 cm x 19.8 cm x 3.5 cm
• Weight: 0.70 kg – 1.00 kg
