Description
Product Highlights
• Supports Intel® Core™ 14th, 13th and 12th Gen processors
• Intel® H610 chipset with LGA1700 socket
• 2 x DDR4 DIMM slots supporting up to 64GB memory
• Supports DDR4 memory speed up to 3200MHz
• HDMI and D-Sub display output for flexible connectivity
• 1 x M.2 slot and 4 x SATA 6Gb/s ports for storage expansion
• Micro ATX form factor suitable for compact PC builds
Key Specifications

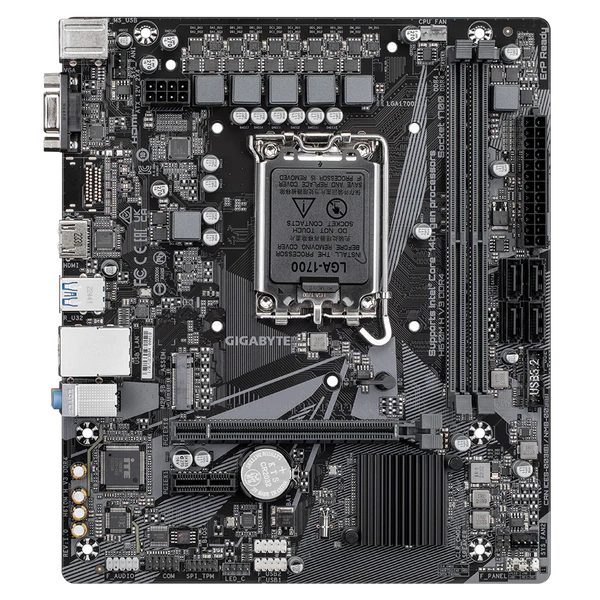

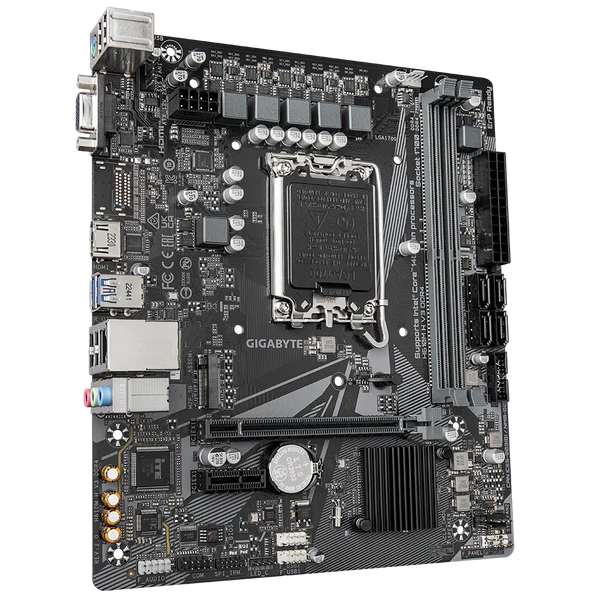

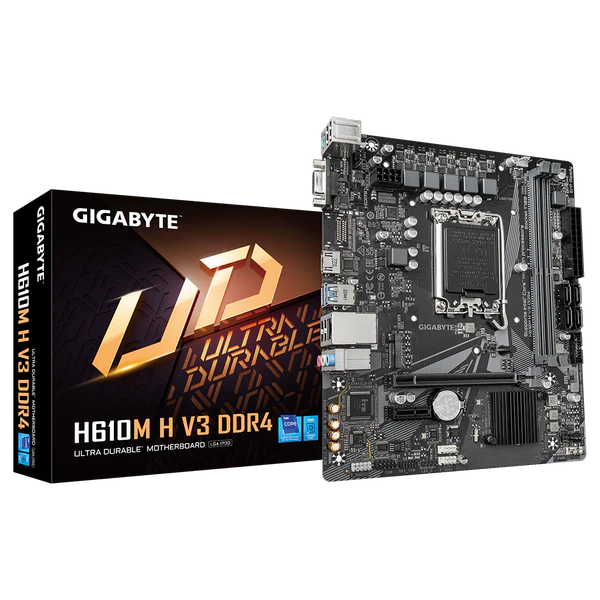

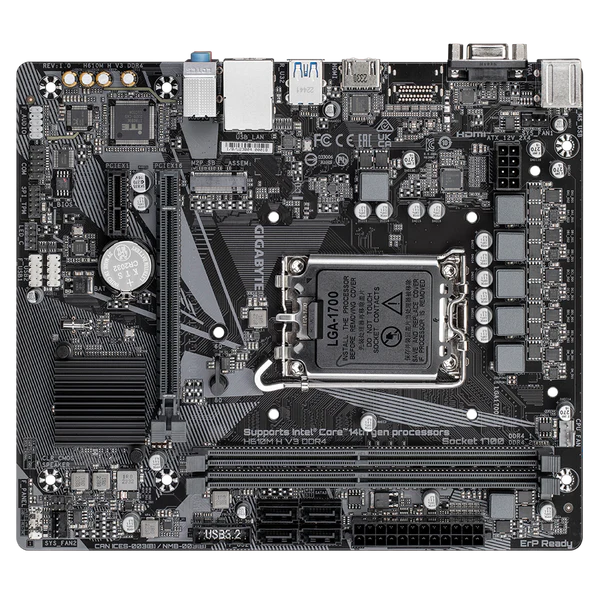

Model: H610M H V3 DDR4
Product Type: Intel Motherboard
Form Factor: Micro ATX / mATX
Chipset: Intel H610
Socket: Intel LGA1700
CPU Support:
• Intel® Core™ 14th Gen Processors
• Intel® Core™ 13th Gen Processors
• Intel® Core™ 12th Gen Processors
• Intel® Pentium® Gold Processors
• Intel® Celeron® Processors
Memory: 2 x DDR4 DIMM
Maximum Memory: Up to 64GB
Memory Speed: DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133
Memory Support: Dual Channel, Intel® XMP
Video Output:
• 1 x D-Sub port
• 1 x HDMI port, supports up to 4096 x 2160 @ 60Hz
Expansion Slots:
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot
Storage:
• 1 x M.2 connector, Socket 3, M Key, Type 2280 / 2260
• Supports PCIe 3.0 x4 / x2 SSD
• 4 x SATA 6Gb/s connectors
LAN: Realtek® GbE LAN
Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio

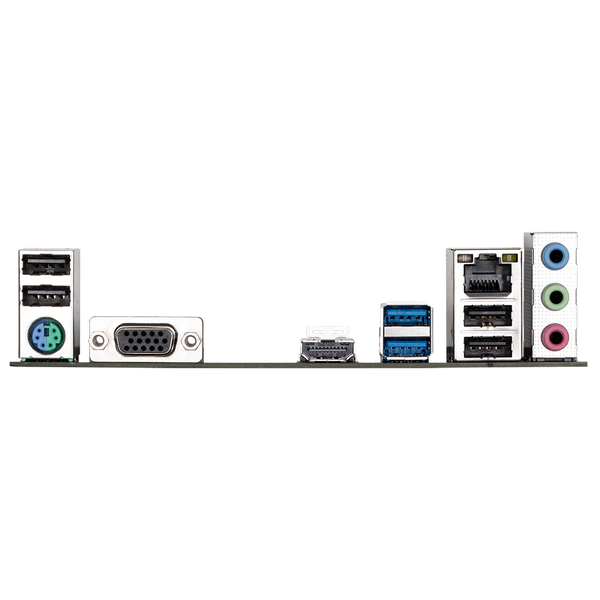

Rear I/O Ports:
• 1 x PS/2 keyboard / mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0 / 1.1 ports
• 1 x RJ-45 port
• 3 x Audio jacks
Special Features:
• 4+1+1 Hybrid Digital VRM Design
• Smart Fan 6
• GIGABYTE APP Center
• Q-Flash
• Anti-Sulfur Resistors Design
Operating System: Windows® 11 64-bit, Windows® 10 64-bit
Dimensions & Weight
Dimensions: 22.3 x 19.3 x 2.0 cm
Weight: 1.00 kg
