Description
Product Highlights
• Supports AMD Ryzen™ 9000, 8000 and 7000 Series processors
• AMD A620 chipset with AM5 socket for modern Ryzen builds
• 2 x DDR5 DIMM slots supporting up to 128GB memory
• Supports DDR5 memory speed up to 6400MT/s (O.C.)
• DisplayPort and HDMI display output for flexible connectivity
• 1 x PCIe 4.0 M.2 slot and 4 x SATA 6Gb/s ports for storage expansion
• Micro ATX form factor suitable for compact PC builds
Key Specifications

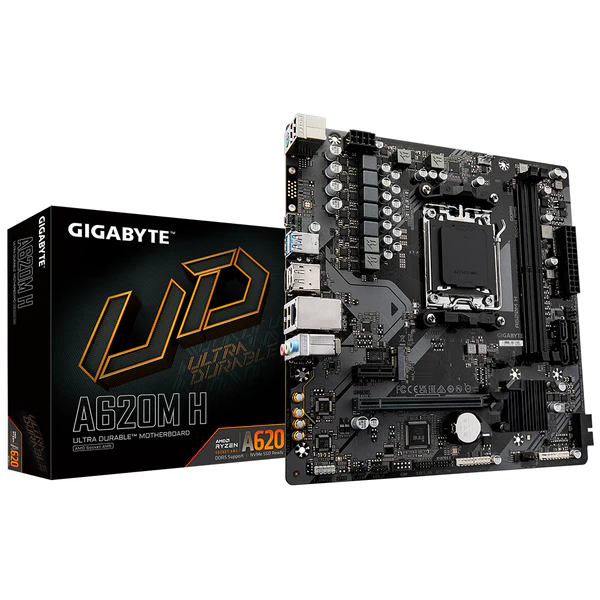

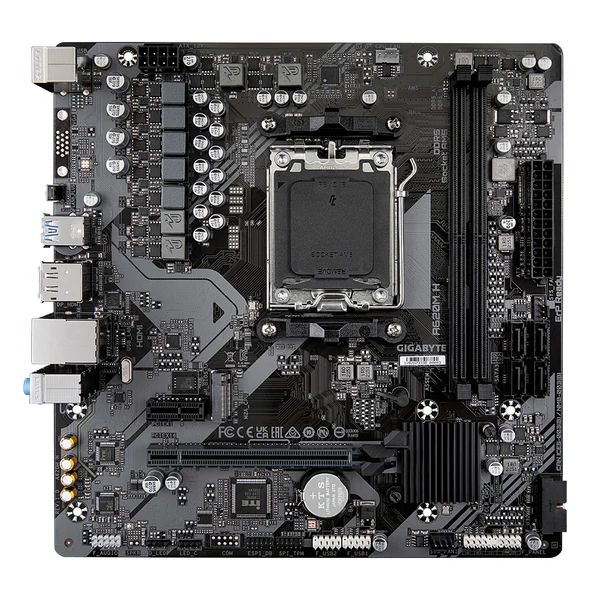

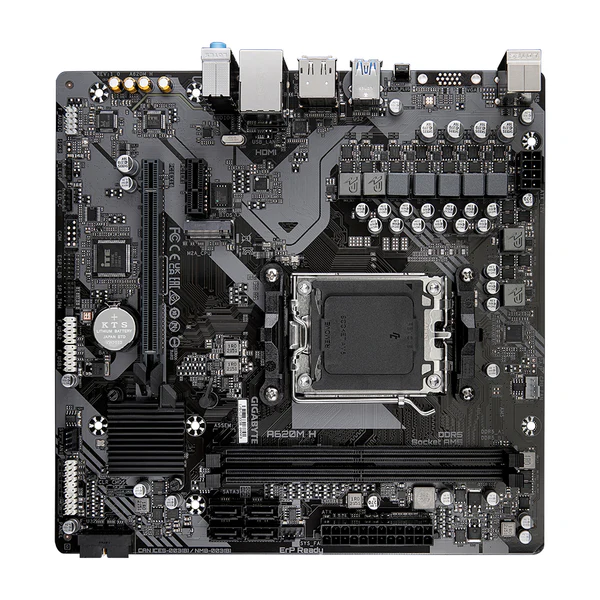

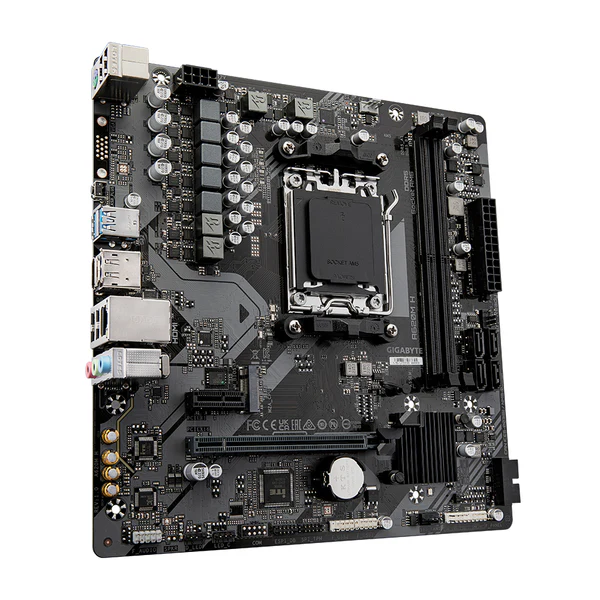

Model: A620M H
Product Type: AMD Gaming Motherboard
Form Factor: Micro ATX / mATX
Chipset: AMD A620
Socket: AMD Socket AM5
CPU Support:
• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors
Memory: 2 x DDR5 DIMM
Maximum Memory: Up to 128GB
Memory Speed: DDR5 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s
Memory Support: Dual Channel, AMD EXPO™, Intel® XMP, Non-ECC Un-buffered DDR5
Graphics Output:
• 1 x DisplayPort 1.4, supports up to 3840 x 2160 @ 144Hz
• 1 x HDMI 2.1 port, supports up to 4096 x 2160 @ 60Hz
Expansion Slots:
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot
Storage:
• 1 x M.2 connector, Socket 3, M Key, Type 2580
• Supports PCIe 4.0 x4 / x2 SSD
• 4 x SATA 6Gb/s connectors
• Supports RAID 0, RAID 1 and RAID 10
LAN: Realtek® GbE LAN
Audio: Realtek® Audio CODEC, 2 / 4 / 5.1 / 7.1-channel High Definition Audio

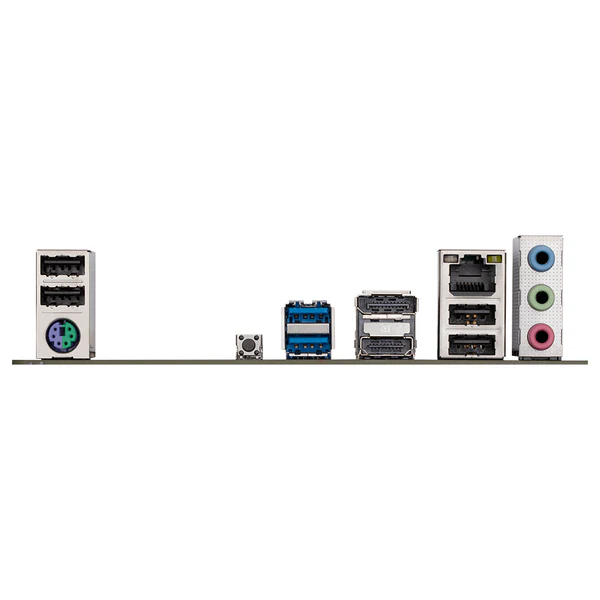

Back Panel Connectors:
• 4 x USB 2.0 / 1.1 ports
• 1 x PS/2 keyboard / mouse port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 port
• 3 x Audio jacks
Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x System fan headers
• 1 x Addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0 / 1.1 headers
• 1 x Trusted Platform Module header
• 1 x Clear CMOS jumper
Special Features:
• 5+2+2 Phases Digital VRM Solution
• PCIe 4.0 Design
• PCIe EZ-Latch
• Q-Flash Plus
• Q-Flash
• Smart Fan 6
• GIGABYTE Control Center
• RGB Fusion Support
Operating System: Windows® 11 64-bit, Windows® 10 64-bit
Dimensions & Weight
Dimensions: 23.0 x 22.5 x 2.0 cm
Weight: 1.00 kg
